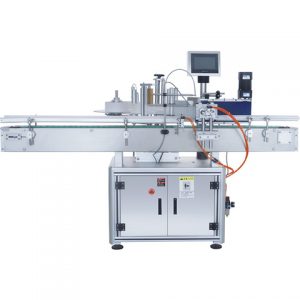

Automatic Vertical Round Bottle Sticker Labeling Machine

Automatic Vertical Round Bottle Sticker Labeling Machine
The vertical round bottle sticker labeler is designed to achieve a rationalized production goal. The labeling process is automated, the operation is simple, the production speed is fast, the labeling position is uniform, beautiful, and tidy; it is suitable for the round container labeling in the pharmaceutical, chemical, food and other industries, and can be labeled on the whole circle and half circumference. Optional ribbon coder and printer, labeling at the same time to achieve print production batch number, production date and other information. To achieve the integration of labeling and coding, reduce packaging processes and increase production efficiency.

Labeling speed200-400b/m (Adjustable speed, depending on bottle size and label length)
Labeling accuracy+1mm(depends on products Characteristics, hardness and trueness of the circle)
Bottle diameter25-120mm
Object rangeHeight: 20mm ~ ~ 300mm (Can be customized according to customer requirements)
Label specificationsHeight:10mm~~150mm  Length: 15~~300mm (Special specifications can be customized)
Roll diameterΦ76mm Outer roll diameter: Φ300(max)
 Power supplyAC220V 50/60HZ 980W
Weight200KG
Package Size1950*1100*1300mm
It is suitable for a range of round bottles

The machine is adapted advanced technology in the world
1. Touch screen and PLC control
2. Around 30 memory recipes for labeling parameters easy for change bottle size
3. Low or missing label detect
4. Synchronized speed selection
5. Servo motor drive for high accuracy and high speed
6. No bottle no labeling

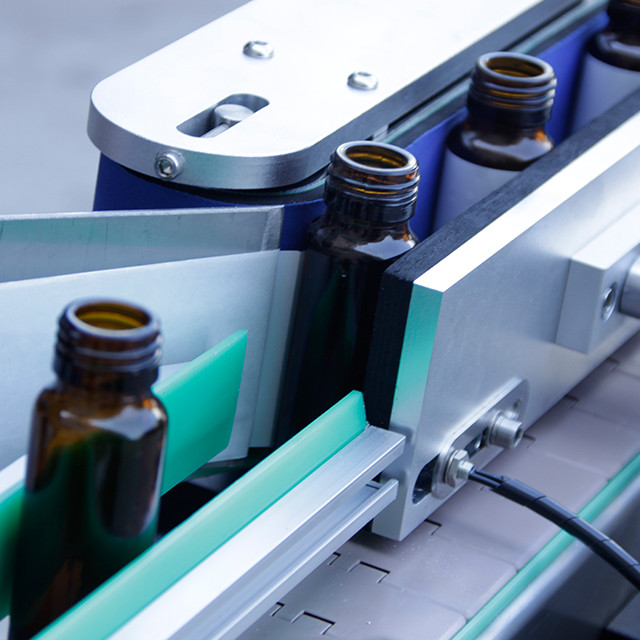

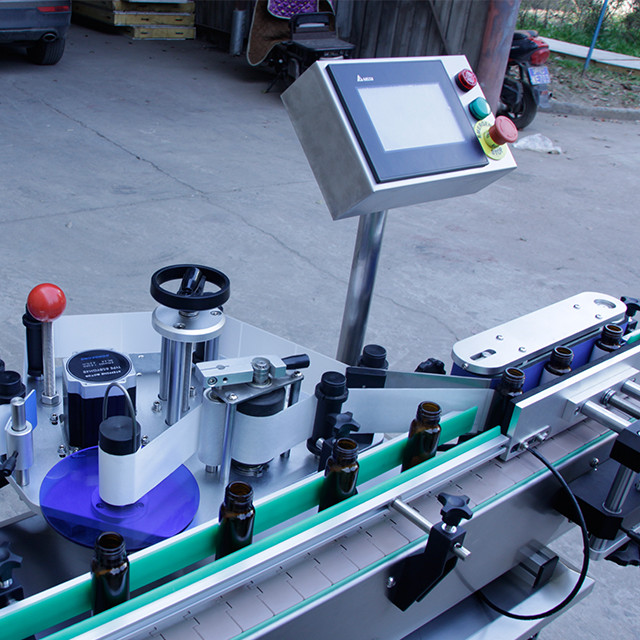

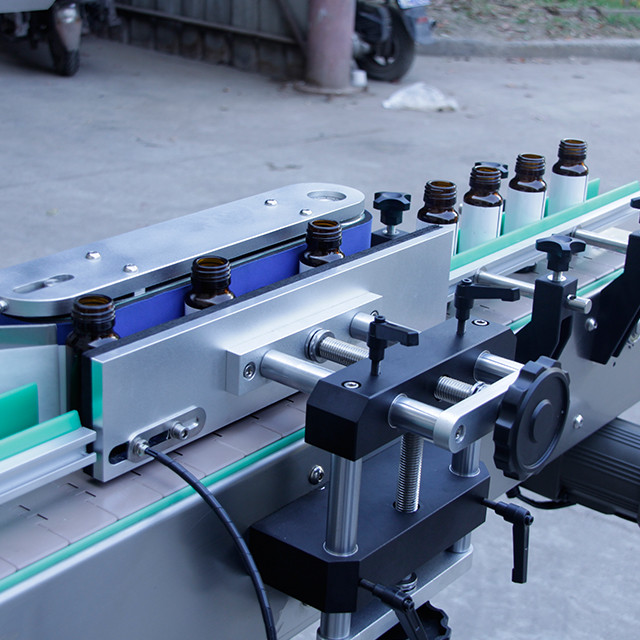

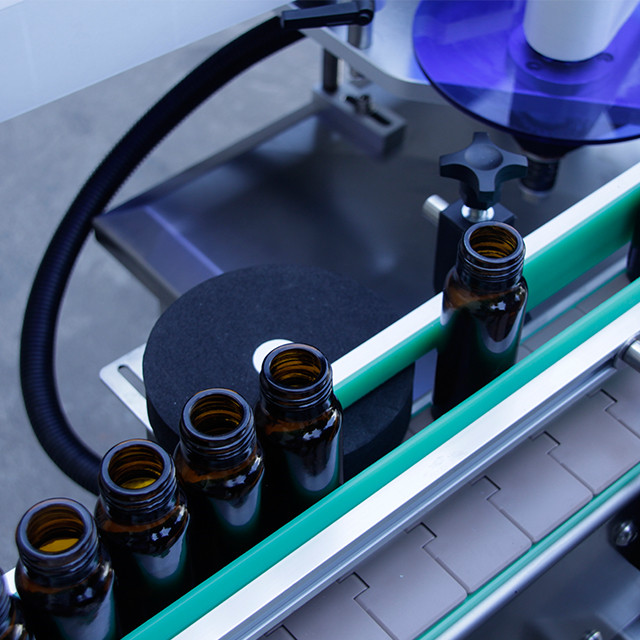

Details:
