Automatic Paging Sticker Labeling Machine

Automatic Paging Sticker Labeling Machine
This machine is called automatic page labeling machine, also called automatic card labeling machine, which belongs to the series labeling machine series.
Scope of application:
1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
2. Applicable products: Products that require labels or films on flat and large curved surfaces;
3. Application industry: widely used in electronics, hardware, plastics, chemical and other industries;
4. Application examples: cardboard labeling, acrylic film, large plastic film, ceramic film, IC card labeling, etc.

Drive modeStepper motor
Labeling speed30-150pcs/min (Depending on the size of the label)
Products sizeLength 40-400mm,Width 40-200mm,Height 0.2-150mm
Label sizeLength 6-150mm,Width 20-180mm
Labeling accuracy±1mm
Machine size2900*900*1400mm
Weight250kg
Power220V 50Hz   1.2KW

Features:

1. The card is stable and adopts the advanced sorting-reverse dial technology card. The card sorting rate is much higher than the general card sorting mechanism;

2. The speed of labeling of the card is high, and the supervision code for the medicine box is posted, and the stable speed can reach 200 pieces/min or more;

3. Wide application range, can meet the labeling of various cards and paper-like items, and is suitable for labeling unfolded carton;

4. The labeling accuracy is stable, the workpiece is pressed by the top roller, the conveying is stable, the curling is not ensured, and the labeling accuracy is guaranteed;

5. The mechanical adjustment part of the structural combination and the ingenious design of the label winding, the 6-degree-of-freedom of the labeling position is convenient to adjust, so that the conversion between different products and label winding becomes simple and time-saving;

6. Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection to prevent leakage and label waste;

7. High stability, PLC + touch screen + fiber optic eye + label electric eye composed of advanced electronic control system, support equipment 7 × 24 hours of operation;

8. With fault alarm function, production counting function, power saving function, production number setting prompt function, parameter setting protection function.

Automatic Paging labeling machine optional features and components:

1. Hot coding / coding function;

2. Automatic receiving function (in combination with product considerations);

3. Automatic feeding function (in combination with product considerations);

4. Increase the labeling device;

5. Other functions (customized according to customer requirements).

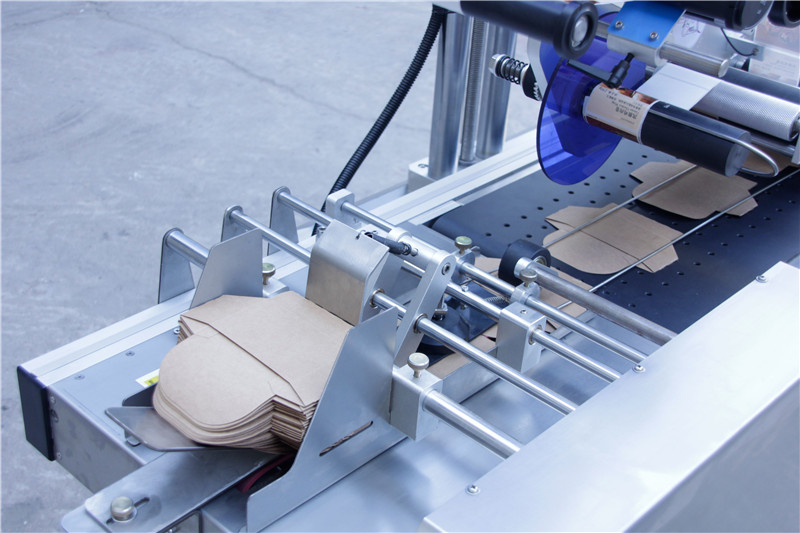

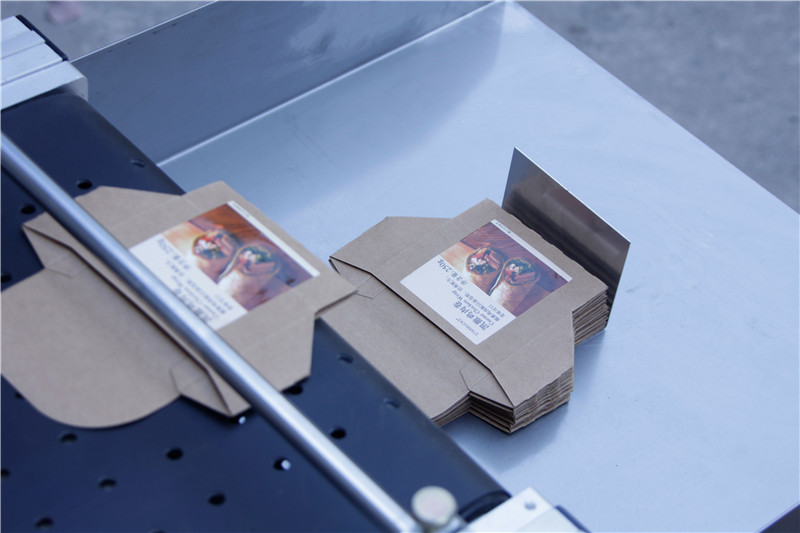

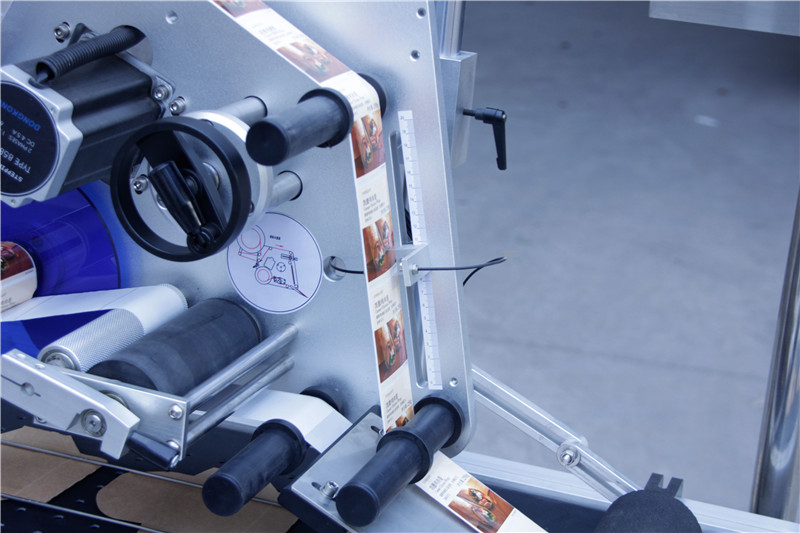

Details:
